Equilibrium visualisation

The raytrax.plot.plot2d module provides four helpers for inspecting a magnetic configuration on a poloidal R–Z cross-section:

plot_magnetic_field_rz — contour lines of $|B|$
plot_effective_radius_rz — flux-surface contours ($\rho$)
plot_electron_density_rz — filled colour map of $n_e$
interpolate_rz_slice — raw interpolation data

This example uses the bundled W7-X equilibrium from raytrax.examples.w7x.

Loading the W7-X equilibrium

get_w7x_magnetic_configuration builds the magnetic configuration from the bundled W7-X VMEC++ equilibrium. The result is cached on disk after the first run.

import contextlib
import io
import warnings

import jax

jax.config.update("jax_enable_x64", True)

warnings.filterwarnings("ignore", category=DeprecationWarning, module="equinox")
warnings.filterwarnings("ignore", category=UserWarning, message=".*non-interactive.*")

import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np

from raytrax import RadialProfiles
from raytrax.examples.w7x import PortA, get_w7x_magnetic_configuration
from raytrax.plot.plot2d import (
    plot_effective_radius_rz,
    plot_electron_density_rz,
    plot_magnetic_field_rz,
)

with contextlib.redirect_stdout(io.StringIO()):
    mag_conf = get_w7x_magnetic_configuration()

# Evaluate at the toroidal angle of Port A (≈ 0°)
phi = np.deg2rad(PortA.D1.phi_deg)

rho_prof = jnp.linspace(0, 1, 200)
profiles = RadialProfiles(
    rho=rho_prof,
    electron_density=0.5 * (1.0 - rho_prof**2),
    electron_temperature=3.0 * (1.0 - rho_prof**2),
)

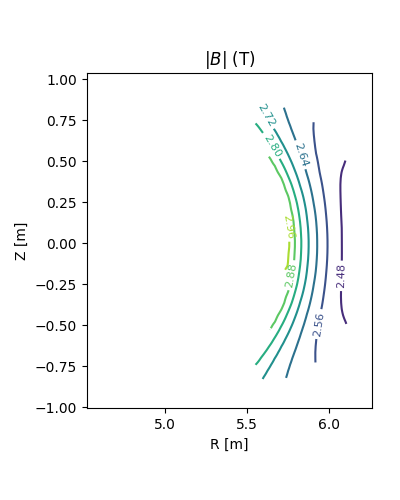

Magnetic field strength

plot_magnetic_field_rz draws contour lines of $|B|$ in the R–Z plane. Points outside the last closed flux surface ($\rho > 1$) are masked.

fig, ax = plt.subplots(figsize=(4, 5))
plot_magnetic_field_rz(mag_conf, phi=phi, ax=ax, levels=8)
ax.set_title(r"$|B|$ (T)")
plt.tight_layout()
plt.show()

$$|B|$ (T)$

Flux-surface contours

plot_effective_radius_rz overlays the $\rho = 0.1, 0.2, \ldots, 1.0$ contours. The W7-X cross-section is non-circular — the bean-shaped geometry is clearly visible.

fig, ax = plt.subplots(figsize=(4, 5))
plot_effective_radius_rz(mag_conf, phi=phi, ax=ax)
ax.set_title(r"$\rho$ contours")
plt.tight_layout()
plt.show()

$$\rho$ contours$

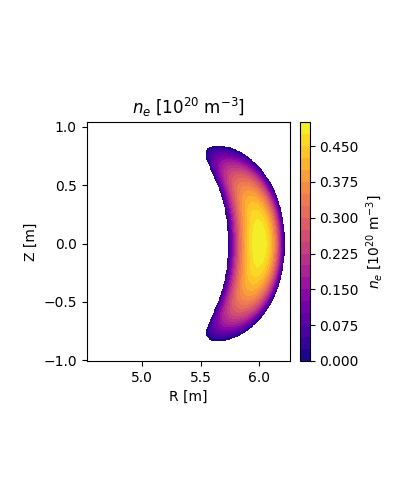

Electron density

plot_electron_density_rz maps $n_e(\rho)$ onto the poloidal plane via a filled contour plot.

fig, ax = plt.subplots(figsize=(4, 5))
plot_electron_density_rz(mag_conf, profiles, phi=phi, ax=ax)
ax.set_title(r"$n_e$ [$10^{20}$ m$^{-3}$]")
plt.tight_layout()
plt.show()

$$n_e$ [$10^{20}$ m$^{-3}$]$

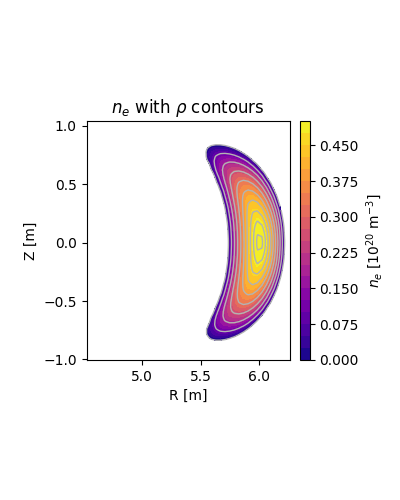

Combining plots

All helpers return the active Axes object, so they can be layered on a single figure.

fig, ax = plt.subplots(figsize=(4, 5))
plot_electron_density_rz(mag_conf, profiles, phi=phi, ax=ax)
plot_effective_radius_rz(mag_conf, phi=phi, ax=ax)
ax.set_title(r"$n_e$ with $\rho$ contours")
plt.tight_layout()
plt.show()

$$n_e$ with $\rho$ contours$

Total running time of the script: ( 0 minutes 3.757 seconds)
